Photo Report – Can’t Snow Me Down: A Winter Shakedown at Lučko

By me
All photos me too unless otherwise stated, copyrighted

While this year’s game of Lučko Roulette – trying to fly your aircraft out before the field closes due to bad weather 😀 – has been generally successful, the constraints of the limited apron capacity at Zagreb Intl. meant that a few aircraft (notably those with a hangar above their heads) have nevertheless remained at the field. Faced with the prospect of them sitting idle in sub-zero temperatures until the runway melts and dries out – which can take awhile – the “flight ops department” of Aeroklub Zagreb had once again decided to clear out its hangar and give everything in there a thorough shakedown :).

While at first it may seem a bit pointless to fire up the engine, proverbially rev the bolts off it, and turn it off again without going anywhere, the procedure does have a host of beneficial effects. Primarily and most importantly, it allows the engine to periodically clear itself of all the deposits and substances that can (and will) accumulate in its piping and systems during a long stay on the ground. If left to settle firmly over the winter, these substances – the most common being carbon deposits on the spark plugs – can seize and/or severely damage the engine when it is finally started; but, if anticipated during these shakedown runs, they can be easily removed by simply revving the engine to raise the temperatures in the cylinders until the deposits burn away and the engine starts to run smoothly.

The same also applies to the oil system – which, on the face of it, is the very system that allows the engine to run in the first place. And while winter temperatures in Zagreb rarely go below -15 Centigrade – well above the temperature at which winter-grade oil thickens dangerously and freezes – the system itself has a number of moving parts (the most important being the oil pump) that are also susceptible to the above stated. Running the engine at a higher throttle setting allows the pump(s) to run up to speed and warm up, breaking off any deposits on their blades and bearings. In addition, the flow of oil through the system picks up any impurities that might have settled on the bottom of the pipes and deposits them on the (removable) oil filter, thus cleaning out the entire system.

The fuel system too needs some attention, mostly to purge it of water deposits that – inevitably 😀 – form in its low points. Being heavier and thicker than Avgas, water tends to sink and collect at the bottom of fuel tanks and pipes – and if ingested into the cylinders in a large enough quantity can cause a lot of (very expensive!) damage. By its very nature, water is incompressible; and when it winds up in the part of the engine DESIGNED to compress, something has to give… which is usually the piston 😀 (however, there are systems that inject water into the cylinders on purpose – but this is on a controlled and measured basis. These systems – usually known as Anti Detonation Injection, or ADI – squirt a small amount of water into the inlet pipes, which then absorbs excess heat in the cylinder and prevents uncontrolled spontaneous ignition, as well as providing a significant increase in power… as seen on the P-47 Thunderbolt 🙂 ). Thankfully, the unwanted water can be easily removed from the system by draining the bottom of the fuel tank using a special valve, as well as dumping the contents of the pipes at the low point of the system – usually just after the fuel selector normally mounted on the cabin floor – using a small lever in the engine bay.

Draining fuel from a wing tank drain valve on a Piper or Beech. A small amount of fuel is drained into a cup or bottle and checked for water, which would show up as a transparent sediment on the bottom – one of the reasons why Avgas is colored 🙂 (the other being that fuels of a different octane ratings are colored differently for easy visual recognition) (photo from: cdn.wn.com)

Less visible benefits of these high-power runs also include recharging of the battery, which will – again inevitably 🙂 – discharge or even go flat after awhile (as had happened to our Piper Warrior). The ready supply of electricity from the alternator allows too for a check of the aircraft’s other electrically-powered systems, such as the radios, flaps (where available), lights and so on…

However, before all of that, you first have to take care of one small detail – pushing everything out into the open :D. Normally this is not a problem – but our efforts that day were a tad complicated by the inch or two of fresh snowfall from the night before… 🙂

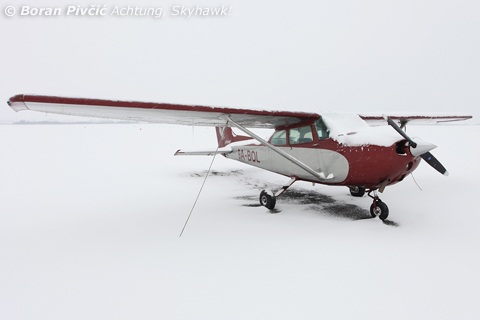

A welcome splash of color on an otherwise completely white Lučko. While it did us no favors with the main task of the day, last night’s snow – still ongoing at the time this photo was taken – did at least provide for some nice photo opportunities!

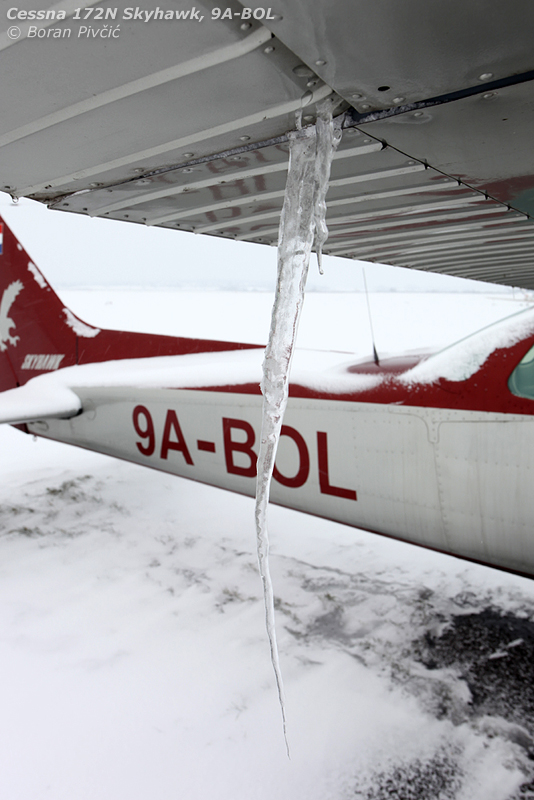

The art of icing? 😀 Even more ironic given that this specific aircraft is usually based on the warm and sunny island of Brač on the Adriatic coast 🙂

Preparing to fire up 9A-DDA, AK Zagreb’s very-rarely-seen Piper Warrior. Not having flown for ages, a flat battery is pretty much a permanent state on this aircraft, requiring the use of a Ground Power Unit for starting

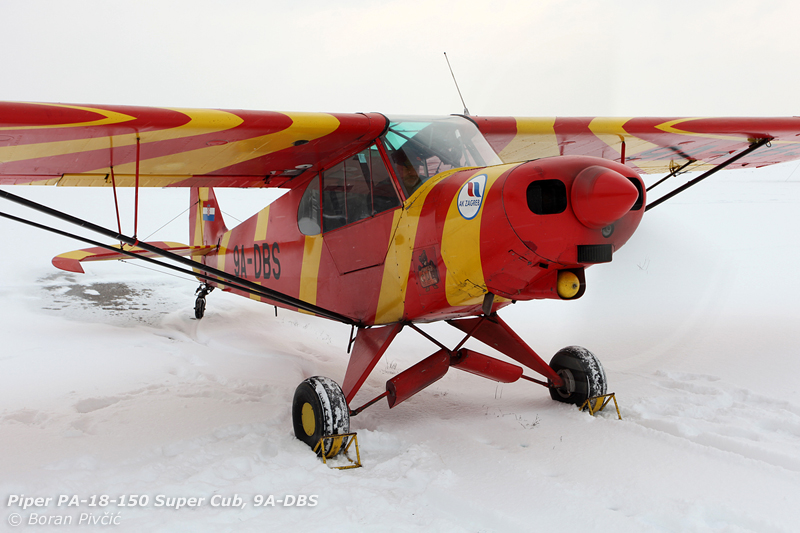

9A-DBS doing its best to clean up the airfield :D. Despite the odd childish impulse to gun the engine and see how big a cloud you’d create, these high-power shakedown runs have to be done with caution – especially on an aircraft like the Super Cub. With its high power-to-weight ratio, an unsecured Super Cub could – despite the brakes being locked full on – easily start sliding forward on the snow. To protect against that as much as possible, the wheels need to be secured with chocks, preferably dug into the snow (and if possible, it’d be a prudent move to tie the aircraft down)

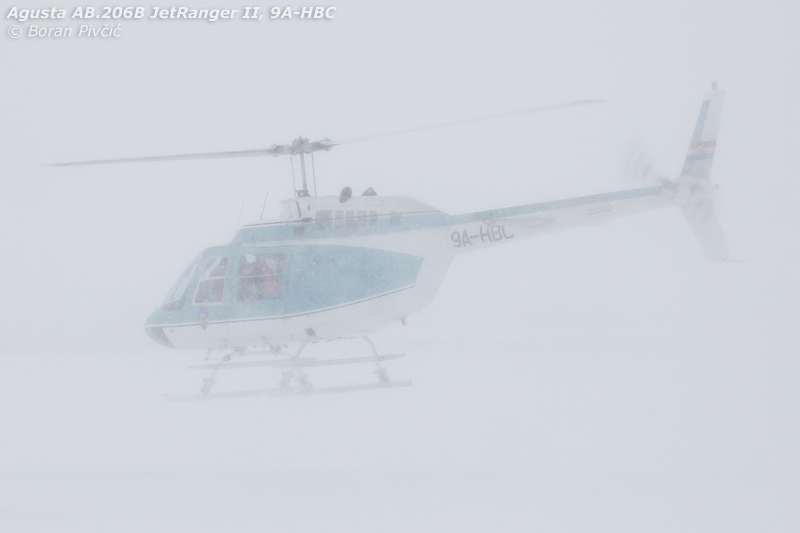

Complete and total whiteout as 9A-HBC lifts off from the main apron. Sporting a cabin full of Christmas presents – and even a helicopter-pilot-turned-Santa 🙂 – HBC was the centerpiece of a small celebration organized for the children of the Police helicopter squadron pilots. Now, what would an aviation-oriented kid have thought of that? a) look, Santa has flown in from the North Pole!, or b) look, Santa has been arrested by the Police for flying a multi-deer sled without a valid JAA license! 😀

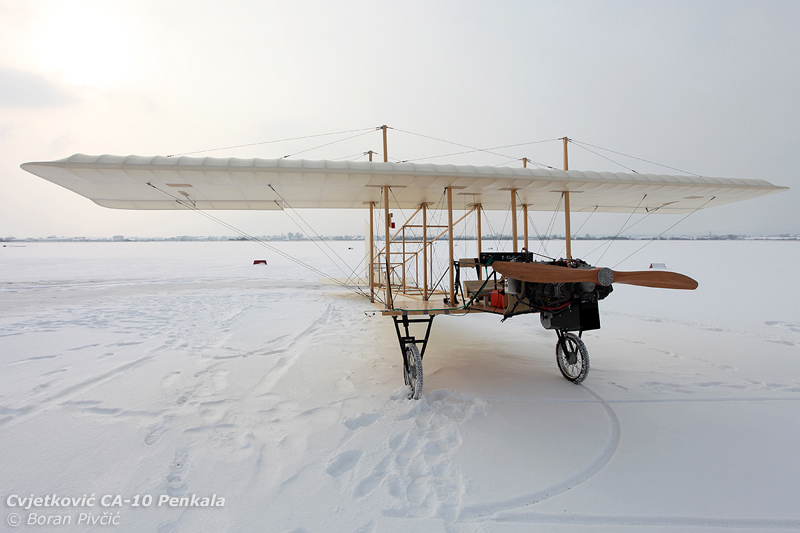

A modern replica of the first aircraft designed and built in Croatia – the Penkala P-3 of 1910 – looking gorgeous out on the snow during an ad-hoc photo shoot :). Not an exact one-for-one copy, the Cvjetković CA-10 Penkala has been modified with today’s aerodynamics knowledge (since the original hadn’t so much flown as hopped along) and an 80 HP Rotax, replacing the original 5-cyl radial :). Normally protected from the elements in the field’s various hangars, this was one of the few times 9A-XCA – as it had been registered a few months back – was seen out and about since September’s Lučko Airshow

Oil, smoke and fire as the I-3’s big M-14P radial labors into life. Not having ran for almost three months, the engine had normally put up quite a fight, spewing liberal amounts of oil from the exhaust during a number of previous startup attempts… also, like virtually all Russian/Soviet light aircraft, the I-3 uses a pneumatic system to start the engine – a system that normally depletes itself when not in use. To fill it up before the engine’s own compressor takes over, an external air source – such as the compressed air cylinder seen here – is necessary

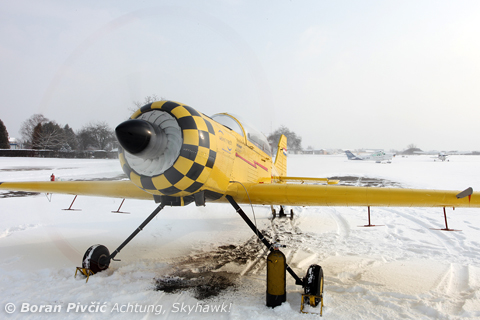

Creating its own weather out back as the big prop revs to its maximum RPM. By the time the 10-minute run was finished, DOG had managed to clear half the apron 🙂
