Rare Aircraft – Mountains and Savannas

By me
Photos as credited

There is a well established procedure among aviation enthusiasts of visiting an airshow simply to see one or two interesting aircraft types. I myself am guilty of this as well, often going to regional shows (ones not far enough away to be expensive) just for the sake of enjoying the sight and sound of a handful of rarities :). While larger shows such as Air Power in Austria and Kecskemet in Hungary have a lot of interesting jets and piston props to offer, back in June I’d set my sights slightly lower and popped ’round to the small air meet at Zvekovac airfield (LDZE), just a 20 minute hop by Skyhawk from Zagreb.

While most of the aircraft in attendance were quite familiar to me – having flown on roughly a fourth of them 😀 – one visitor in particular had piqued my interest ever since I saw it on the guest list: the diminutive Fuji FA-200 Aero Subaru :).

H
Heave! Backing the aircraft – registered D-EIDY – into its parking position required some manhandling by the crew, made all the more difficult by the pronounced slope… and the sizable ditch at the end

One of the very few light aircraft designed and produced by the Japanese aviation industry, the FA-200 is quite an odd machine, examples of which can in Europe be counted on the fingers of one hand. First conceived in the mid-60s – and reminiscent in concept to the Yakovlev Yak-18T – the Aero Subaru is a comfortable and spacious four-seat tourer – and at the same time an aerobatic-capable trainer. To add to this technically challenging mix, the design sports a 400 kg payload, on par even with some larger and more powerful tourers.

Relying more on aerodynamic efficiency than outright brute force, the design in its basic form – the FA-200-160 seen here – is powered by a 160 HP Lycoming O-320 driving a fixed pitch propeller, a setup nicked directly from the Piper Warrior (and/or Cessna Skyhawk). While this power is perfectly adequate for most needs, it did leave something to be desired in the aerobatic role, leading Fuji to introduce the more potent FA-200-180, powered by the 180 HP Lycoming IO-360 linked with a constant speed prop. Interestingly, the subsequent version – the FA-200-180AO – had kept the engine, but reverted once again to a fixed pitch prop, ostensibly to reduce costs and simplify maintenance.

g
Well cared for, D-EIDY spots a very clean and well equipped cockpit, including a Mode S transponder and a Garmin G3X multifunction unit. Note also the military trainer-style throttle lever, designed to fall more easily to hand and be more intuitive to use during maneuvers

In most other respects a solid design – done in the best tradition of Japanese heavy industry – the Aero Subaru had nevertheless failed to even dent the Big Three’s dominance in the GA market, ending its production run with just 275 examples built across all three versions. While on par in terms of quality with offerings from Beech, Cessna and Piper, the FA-200 lacked that “manufacturer’s prestige”, making it a risky choice from a company with little experience in general aviation and a virtually non-existent support network. However, despite these issues, several examples had made it out of Japan and are still happily flying all over the world 🙂 (with most of Europe’s examples concentrated in Hungary).

The same fate however had not befallen another interesting aircraft at the meet (which I’d stumbled upon quite by accident!): the ICP MXP-740 Savannah XL VG :). A name that will leave you short of breath during any attempt to pronounce it out loud, the MXP-740 is one of several spin-offs of the Zenair CH-701, an amazing STOL homebuilt ultralight whose takeoff and landing performance could have very well qualified it as a helicopter :D.

S
A bright & clean STOL aircraft with chunky tires and open doors, on a grass field in the middle of nowhere during a beautiful summer’s morning – a scene that simply begs you to go flying! Absolutely immaculate inside and out, 9A-DIS is one of the two or three best-built homebuilts in Croatia

While not a rare design in itself, the Savannah always warrants at least some attention – especially in this, the XL VG version on which the ICP people had really pushed the boat out :). The XL is pretty much self-explanatory; the VG however refers to vortex generators, small strips of metal on the upper wing surface specifically designed to disrupt the flow of air along the wing. Though this seems somewhat counterproductive, there is a finer underlying logic to it.

Vortex generators visible along the wing on another Savannah (photo from: rnzaf.proboards.com)

As with any fluid flowing along any surface, the airflow in the first inch or so above the wing forms what is known as the boundary layer, a thin area in which the flow speed drops due to air viscosity and surface friction. The behavior of the air in this layer is of great importance for the generation of lift, and is described using two terms: laminar flow and turbulent flow. As its name suggests, the laminar flow is smooth (and silky :D), flowing straight and true with no mixing or significant lateral speed or direction changes. This type of flow creates the least drag, which has made it a must for high performance aircraft – and especially gliders! – but requires a clean and smooth wing with no lumps or bumps :).

The turbulent flow on the other hand is as chaotic as it sounds, constantly being in a state of mix and suffering from continuous speed and direction changes – which, naturally, considerably increases drag. However, due to these characteristics, the turbulent flow sticks to the wing down more of its length, effectively increasing the wing area producing useful lift. This means that for the same wing area, the turbulent flow will create more lift than a laminar one; or, turning the premise around, the turbulent flow will create the same lift at a significantly lower speed. This is of course beneficial to STOL aircraft and trainers – and is one of the reasons why many light aircraft use dome instead of flush rivets on the wings and fuselage, which act as ready-made obstructions and prevent the formation of a laminar flow. However, they can only do so much, so on aircraft that really need proper low-speed handling, they are supplemented by “full blown” vortex generators :).

Vortex generators also enable the wing to reach higher Angles of Attack – which in turn means the aircraft can again maintain the required lift at a much lower speed (source: Aerospaceweb.org)

In concert with the thick low-speed wing, slotted flaps and slotted flaperons – ailerons that droop along with the flaps – these vortex generators give the Savannah a comically low stall speed of just 25 knots :). And with its MTOW of 560 kg pulled along by a 100 HP Rotax 912ULS engine, 9A-DIS can become airborne in just 35 meters (115 ft), with 50 meters (164 ft) needed to land and come to a halt.

A nice
A nice and clean panel, with everything you really need in easy reach. The unusual green panel color is a throwback to the owner’s former workplace, the MiG-21 interceptor

Unfortunately, the aircraft was static only for the duration of the meet – being based at Zvekovac – but I’m told that it is definitely no hangar queen… 🙂

Short Photo Report – Some Mid-Winter Flying

By me
All photos me too, copyrighted

Even though, by most accounts, early February should have seen continental Croatia declared missing under a thick blanket of snow, this year’s odd weather patterns – already having thrown most long term forecasts into the rubbish bin – have decided to treat us to some unusually fine and warm weather instead :). After a month of dull, low overcast and sub-zero temperatures, this week’s clear sunny skies, just a whiff of cirrus clouds and temperatures hovering at around 15 Centigrade were a godsend – and having been deprived of flying for almost two months, I was eager to use this calm spell well and finally log my first few hours as a certified CPL pilot :).

But, there was a twist: in what had met with near universal shaking of the head, the operator of Lučko had failed to renew the airfield’s operational certificate at the end of 2010., leading the Civil Aviation Authority to quickly suspend most operations from the field. And while sport and private flights are still allowed on an “at your own risk” basis – despite the fact that not a single blade of grass is different than in 2010 😀 – commercial and training operations have been banned outright for an indefinite period of time. While it may seem that all is not yet lost, these operations account for the bread and butter of most aircraft operators at Lučko, forcing virtually the entire “fleet” to relocate to Zagreb Intl. (LDZA, locally known as Pleso) until everything is sorted out…

Airfield? This is more of a "ghostfield" if you ask me... only seven aircraft were at the field when I had last visited, two of which - being non-airworthy - were unable to do anything about it. Subsequently, two of the remaining four had flown over to Pleso, leaving Lučko empty and desolate...

However, flying out of an international airport does have its advantages – especially if you own a camera and do not hesitate to use it :D. The more vibrant and dynamic traffic picture at Pleso was bound to produce some interesting aircraft movements, while the 3+ kilometer paved runway meant you could operate at will and not have to worry about morning dew soaking up the notoriously mud-prone Lučko…

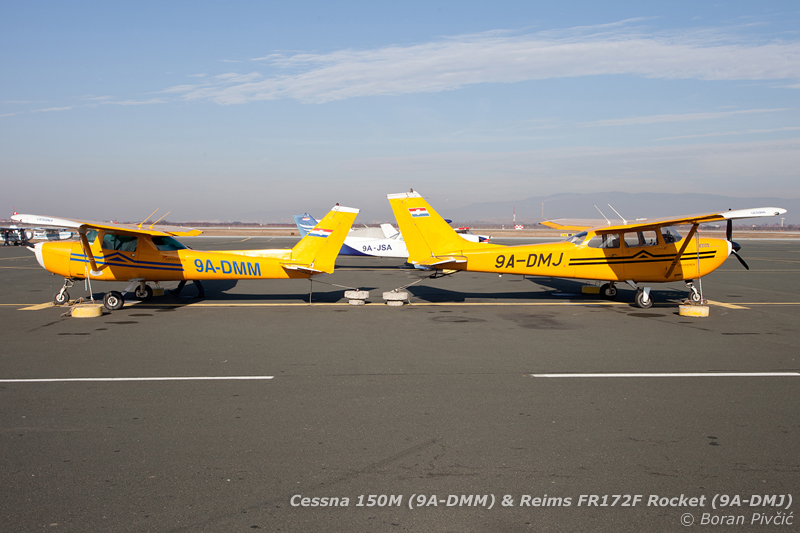

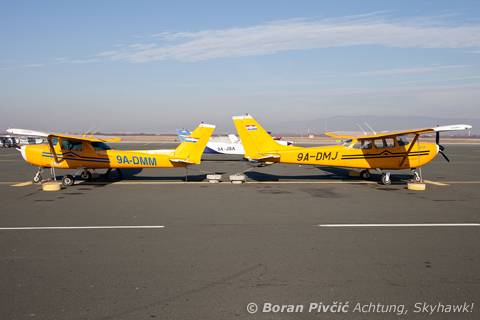

Now all we need to do is tie their tails together with some rope, put two canisters of avgas in front of each one and watch what happens next :D. With most of our Lučko fleet relocated to LDZA, the general aviation apron was becoming awfully cramped. So to make the best use of the limited space available, our parking solutions took a turn for the creative :D.
On final for RWY 05 after a pleasing afternoon aerial photography flight :). While not particularly impressive as an international gateway, Pleso has everything you really need for a smooth operations, including a CAT IIIb ILS and full runway and approach lighting (visible here are the last segment of the so called "Calvert approach lighting system"). The runway, 3252 by 45 meters, can accommodate anything up to and including the 747 and 777. The general aviation apron, easily recognizable by its darker pavement, is to the right of the photo

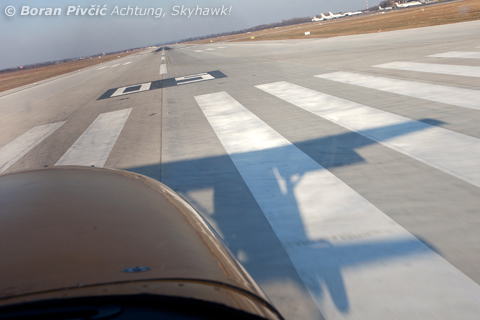

Milliseconds from touchdown right on the piano keys! Even though we have 3000+ meters of runway available, when landing on 05 we usually practice putting the aircraft down as soon as practically possible so we can hit the brakes and vacate the runway via taxiway Bravo, located 350 meters from the threshold. This not only moves us out of the way of much faster commercial traffic, but also allows us to taxi directly onto the general aviation apron without having to go past the entire main apron - again freeing up space for the big birds :).
The apron itself did not disappoint either :D. All lumps, bumps and antennae, this purposeful looking RC-12K Guardrail is actually a SIGINT - or "signals intelligence" - aircraft, whose mission is to prowl the skies listening for new and unknown frequencies of hostile search and fire control radars and/or intercepting communication transmissions over a wide range of frequencies (hence the antennae). Quite secretive otherwise, this example belongs to the US Army, and is based on the not-at-all warlike Beech King Air A200 executive turboprop (or more precisely its military utility version, the C-12 Huron) - and was in town most probably to participate in a NATO exercise over the mountains of central Croatia. Interestingly enough, only nine K models were ever made, and this specific example is the first of the lot 🙂

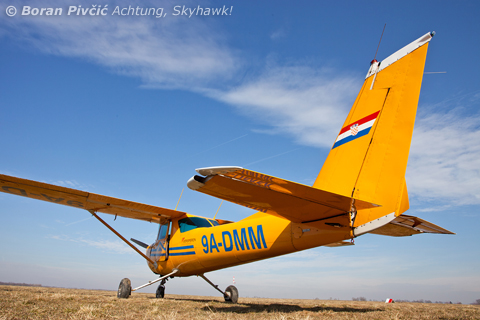

Looking beautiful at the small grass strip of Zvekovac (LDZE), some 15 minutes of flying time away from Zagreb. Calm and quiet, it was a perfect destination for a short flying getaway to catch some air outside the CTR :). The flock of sheep standing several meters behind me though were not amused by our rather noisy arrival :D.

Post Update – 9A-DGW Landing Incident

By me

Just got back from the field with a few new bits of information about yesterday’s incident :). Apparently, DGW had landed a bit too long and couldn’t stop in time on the slippery grass. The pilot had managed to shut the engine down and switch off the magnetos before hitting the drainage canal, so the damage is said to be a lot less than previously though – just one bent prop blade. However, this will still necessitate an engine strip down and examination of the whole prop, so it’s not over yet… :). And that is as much as I have so far… stressing the “said” and “apparently”…

News – Cessna 182T 9A-DGW Incident

By me
Photos me too, copyrighted

Just heard from Dean T. – and confirmed in the news – that 9A-DGW, our own Lučko C182T, was involved in a landing incident at the Zvekovac private airfield just outside Zagreb. Apparently, it had skidded off the slippery runway and ended up in a drainage canal that runs across the field. First reports indicate that the pilot is okay and without injuries, but that the material damage on the aircraft is substantial, at around €11.000, including a bent prop and knackered engine (pretty much what happened to 9A-BKS featured here recently).

Will post more updates as soon as I get some reliable information.

Seen a few months after it had joined the Croatian register. A 2001 normally-aspirated model, it was one of the best rentable aircraft at the field, operated by Air MGV
Fully equipped with everything you need, by far the best classic panel at the field 🙂
